[Amel Yacht Owners] SIPHON BREAK USING A VENTED LOOP -RAW WATER ENGINE COOLING SYSTEM

Alexandre Uster von Baar <uster@...>

Good afternoon Alex,

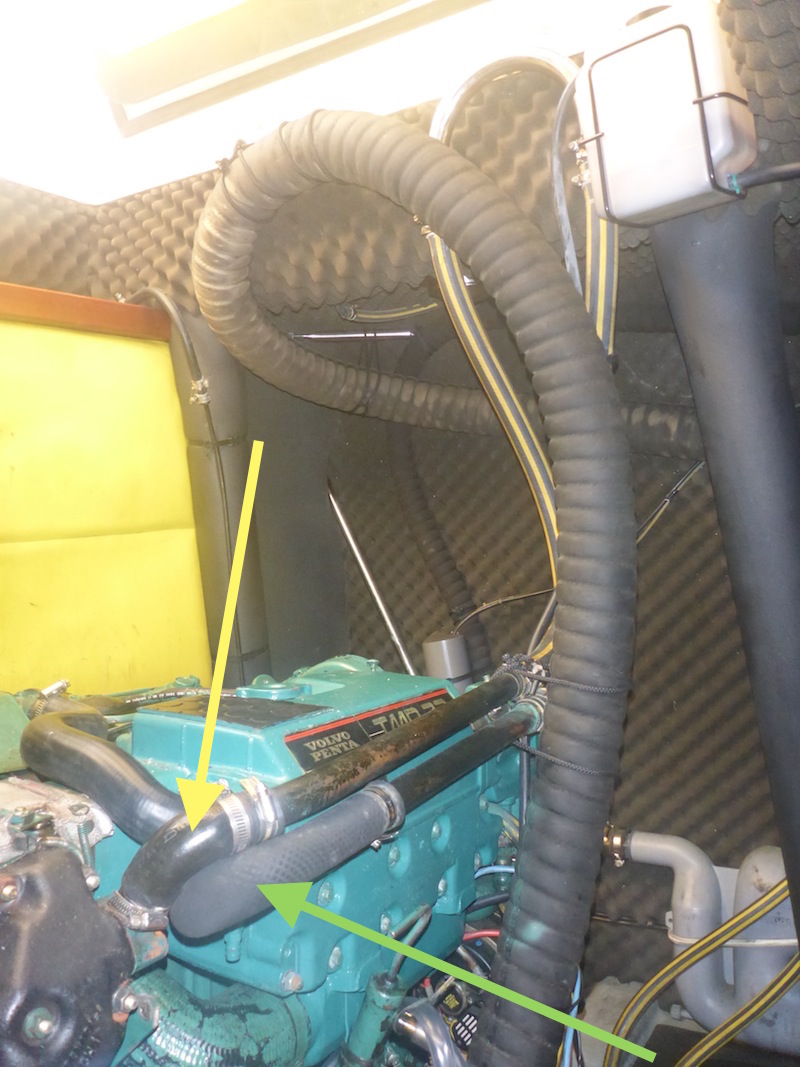

Here is a picture of the anti- siphon on my vessel, I have the Volvo TMD 22 P
http://www.nikimat.com/volvo_tmd22p_missing_hoses/volvo_tmd22p_missing_hoses_4.jpg
Don’t look at the arrows, they are for something else.
The BIG black hose is the exhaust.
Behind it is a yellow/black hose going to the top of the picture to a metallic half circle, that is the anti- siphon.

I will also sent you directly via email a page of the SM2K Owner Manual showing the Yanmar anti- siphon.
Let me know if you receive it.

Sincerely, Alexandre
SM2K #289 NIKIMAT
Club Nautico de San Juan, Puerto Rico



--------------------------------------------

Show quoted text

On Wed, 9/7/16, alex.paquin@... [amelyachtowners] <amelyachtowners@...> wrote:

 Subject: [Amel Yacht Owners] SIPHON BREAK USING A VENTED LOOP -RAW WATER ENGINE COOLING SYSTEM
 To: amelyachtowners@...
 Date: Wednesday, September 7, 2016, 2:32 PM

       Good
 afternoon, does anyone have
 images or a diagram of an anti- siphon installation
 on the raw water side of the engine cooling system? I am
 considering this step in addition to a few others to avoid
 water backing into the engine exhaust system on the Yanmar
 4JH4-HTE (repowered) on our Older Maramu.
 Alex PaquinSIMPATICOOlder Maramu Hull #94,
 1981

         Posted by: alex.paquin@...

                           Reply
 via web post
                       •

                Reply to sender
           •

               Reply to group
           •
             Start a New
 Topic
           •
                             Messages in this
 topic
                 (1)

Alejandro Paquin

#29119

Dear Alexander,
Many thanks for your email, very interesting thank you. Was this an original Amel installation on your boat?
One question, I don´t see a breathing (venting) valve on either loops. Can it work that way?
I enjoy very much your very orderly way of describing and documenting your work onboard. Very useful indeed.
Best regards,
Alex Paquin

Show quoted text

-----Original Message-----
From: Alexandre Uster von Baar [mailto:uster@...]
Sent: Wednesday, September 07, 2016 5:54 PM
To: amelyachtowners@...
Cc: alex.paquin@...
Subject: Re: [Amel Yacht Owners] SIPHON BREAK USING A VENTED LOOP -RAW WATER ENGINE COOLING SYSTEM

Good afternoon Alex,

Here is a picture of the anti- siphon on my vessel, I have the Volvo TMD 22 P http://www.nikimat.com/volvo_tmd22p_missing_hoses/volvo_tmd22p_missing_hoses_4.jpg
Don’t look at the arrows, they are for something else.
The BIG black hose is the exhaust.
Behind it is a yellow/black hose going to the top of the picture to a metallic half circle, that is the anti- siphon.

I will also sent you directly via email a page of the SM2K Owner Manual showing the Yanmar anti- siphon.
Let me know if you receive it.

Sincerely, Alexandre
SM2K #289 NIKIMAT
Club Nautico de San Juan, Puerto Rico

--------------------------------------------
On Wed, 9/7/16, alex.paquin@... [amelyachtowners] <amelyachtowners@...> wrote:

 Subject: [Amel Yacht Owners] SIPHON BREAK USING A VENTED LOOP -RAW WATER ENGINE COOLING SYSTEM
 To: amelyachtowners@...
 Date: Wednesday, September 7, 2016, 2:32 PM

       Good
 afternoon, does anyone have
 images or a diagram of an anti- siphon installation  on the raw water side of the engine cooling system? I am  considering this step in addition to a few others to avoid  water backing into the engine exhaust system on the Yanmar  4JH4-HTE (repowered) on our Older Maramu.
 Alex PaquinSIMPATICOOlder Maramu Hull #94,
 1981

         Posted by: alex.paquin@...

                           Reply
 via web post
                       •

                Reply to sender
           •

               Reply to group
           •
             Start a New
 Topic
           •
                             Messages in this  topic
                 (1)

Alexandre Uster von Baar <uster@...>

#29127

Good morning Alex,

I took 6 pictures and posted them on:
http://nikimat.com/volvo_tmd22p_siphon_break.html

It shows you the flow of the water, the last 3 pictures will show you the detail of the Syphon Break, with the little pipe that allow air and actually make it a “syphon break”.

Hope that helps!

Have a great day

Sincerely, Alexandre
SM2K #289 NIKIMAT
Club Nautico de San Juan, Puerto Rico

--------------------------------------------

Show quoted text

On Wed, 9/7/16, 'Alex Paquin' alex.paquin@... [amelyachtowners] <amelyachtowners@...> wrote:

 Subject: RE: [Amel Yacht Owners] SIPHON BREAK USING A VENTED LOOP -RAW WATER ENGINE COOLING SYSTEM
 To: "'Alexandre Uster von Baar'" <uster@...>, amelyachtowners@...
 Cc: amelyachtowners@...
 Date: Wednesday, September 7, 2016, 6:01 PM

       Dear Alexander,

 Many thanks for your email, very interesting thank you. Was
 this an original Amel installation on your boat?

 One question, I don´t see a breathing (venting) valve on
 either loops. Can it work that way?

 I enjoy very much your very orderly way of describing and
 documenting your work onboard. Very useful indeed.

 Best regards,

 Alex Paquin

 -----Original Message-----

 From: Alexandre Uster von Baar [mailto:uster@...]

 Sent: Wednesday, September 07, 2016 5:54 PM

 To: amelyachtowners@...

 Cc: alex.paquin@...

 Subject: Re: [Amel Yacht Owners] SIPHON BREAK USING A VENTED
 LOOP -RAW WATER ENGINE COOLING SYSTEM

 Good afternoon Alex,

 Here is a picture of the anti- siphon on my vessel, I have
 the Volvo TMD 22 P
 http://www.nikimat.com/volvo_tmd22p_missing_hoses/volvo_tmd22p_missing_hoses_4.jpg

 Don’t look at the arrows, they are for something else.

 The BIG black hose is the exhaust.

 Behind it is a yellow/black hose going to the top of the
 picture to a metallic half circle, that is the anti- siphon.

 I will also sent you directly via email a page of the SM2K
 Owner Manual showing the Yanmar anti- siphon.

 Let me know if you receive it.

 Sincerely, Alexandre

 SM2K #289 NIKIMAT

 Club Nautico de San Juan, Puerto Rico

 --------------------------------------------

 On Wed, 9/7/16, alex.paquin@... [amelyachtowners]
 <amelyachtowners@...> wrote:

 Subject: [Amel Yacht Owners] SIPHON BREAK USING A VENTED
 LOOP -RAW WATER ENGINE COOLING SYSTEM

  To: amelyachtowners@...

  Date: Wednesday, September 7, 2016, 2:32 PM

        Good

  afternoon, does anyone have

  images or a diagram of an anti- siphon installation  on the
 raw water side of the engine cooling system? I am
 considering this step in addition to a few others to avoid
 water backing into the engine exhaust system on the Yanmar
 4JH4-HTE (repowered) on our Older Maramu.

  Alex PaquinSIMPATICOOlder Maramu Hull #94,

  1981

          Posted by: alex.paquin@...

                            Reply

  via web post

                        •

                 Reply to sender

            •

                Reply to group

            •

              Start a New

  Topic

            •

                              Messages in this  topic

                  (1)
